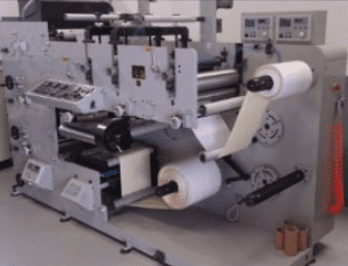

RFDS Compact – 320/450

FLEXO PRINTING MACHINE
WITH DUAL DIE AND ONE SHEETING STATION

Standard Specification:

Inflatable unwind shaft.
Side lay adjuster to unwind shaft.
Electronically controlled magnetic powder brake system for the unwind.
End off roll stop
Web Edge Guide using 2 x web edge scanners for accuracy
Splicing table with paper clamps
Precision ground nip roller.
Mitsubishi in-feed system.
Constant turning ceramic anilox roller
Anilox drop-off prior to stopping to clean printing plate
Printing cylinder auto throw off.
Quick change ceramic anilox rollers.
Quick change rubber metering rollers.
Reverse angle self adjusting doctor blade.
• Ink pan with outlet for ink pumping system.
360º lateral register adjustment.
Longitudinal register adjustment.
Single pneumatically inflated rewind shaft.
Electronically controlled magnetic powder clutch system for the rewind
Pneumatic inflator gun and hose.
Linear meter counter.
Three die-cutting stations, the first and second die-cutting station can do double side working, the third die-cutting station can be used as a sheeter.

Additional Options:

• Turn Bar
• Lamination
• Cold Foiling
• Video Web Inspection
• De-Lamination

Standard Equipment:
3 x full sets of chrome plated precision ground printing cylinders complete with gears and plate mounting guides.
1 x printing plate mounter.
1 x Toolbox.

Technical specification:
Printing Speed: 55m/min
Printing Colour: 2-9 colours
Printing Length: 175-355mmMax.
Web Width: 320mm/ 450mm (additional widths upon request)
Max Unwind Diameter: 650mm
Max Rewind Diameter: 650mm
Print Register Tolerance: +/- 0.10 (dependent on substrate)
Main Machine Size: 2600mm x 1100mm x 2600mm (L x W x H)
Approx. Weight: 3350kg
Voltage: 380V
